SERIES G18-SPL

TUBULAR GLASS GASKET SAMPLE PACKS (GASKETS FOR TUBULAR GAUGES)

Sample Packs

Each pack contains pairs of each listed item.
Comprised of our most common sizes per material.

Application Notes

Steam Service: As stated below per material.
Vacuum Service: Based on valves and gasket. Please contact us.
Compatibility: Before ordering, verify that the gaskets are compatible with the design, media(s), cleaning solutions, and the environment of the application and future applications. Ernst Instruments does not make compatibility recommendations. Compatibility determinations, corrosion or otherwise, are the responsibility of the user.

Warning WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

Neoprene - Sample Pack Specifications

G18-SPL-A62
Item	Size	Temperature	Steam
G18-552-ILH	9/16" x 23/32" x 1/2"	250°F	Not Suitable
G18-552-IMD	9/16" x 13/16" x 1/4"
G18-552-IME	9/16" x 13/16" x 5/16"
G18-552-IMF	9/16" x 13/16" x 3/8"
G18-552-IND	9/16" x 7/8" x 1/4"
G18-552-INE	9/16" x 7/8" x 5/16"
G18-552-INF	9/16" x 7/8" x 3/8"
G18-552-IOF	9/16" x 7/8" x 3/8"
G18-552-IPH	9/16" x 1" x 1/2"
G18-552-IRD	9/16" x 1-1/8" x 1/4"

G18-SPL-A75
Item	Size	Temperature	Steam
G18-552-LNF	23/32" x 7/8" x 3/8"	250°F	Not Suitable
G18-552-LOE	23/32" x 7/8" x 5/16"
G18-552-LOF	23/32" x 7/8" x 3/8"
G18-552-LOH	23/32" x 7/8" x 1/2"
G18-552-LPF	23/32" x 1" x 3/8"
G18-552-LRF	23/32" x 1-1/8" x 3/8"
G18-552-LTD	23/32" x 1-1/4" x 1/4"
G18-552-LTF	23/32" x 1-1/4" x 3/8"
G18-552-LTH	23/32" x 1-1/4" x 1/2"
G18-552-LTJ	23/32" x 1-1/4" x 5/8"

Fluorocarbon (FKM) - Sample Pack Specifications

G18-SPL-C62
Item	Size	Temperature	Steam
G18-576-IMD	9/16" x 13/16" x 1/4"	400°F	Not Suitable
G18-576-IME	9/16" x 13/16" x 5/16"
G18-576-IMF	9/16" x 13/16" x 3/8"
G18-576-IND	9/16" x 7/8" x 1/4"
G18-576-INE	9/16" x 7/8" x 5/16"
G18-576-INF	9/16" x 7/8" x 3/8"
G18-576-ING	9/16" x 7/8" x 7/16"
G18-576-IOE	9/16" x 7/8" x 5/16"
G18-576-IOF	9/16" x 7/8" x 3/8"
G18-576-IOH	9/16" x 7/8" x 1/2"

G18-SPL-C75
Item	Size	Temperature	Steam
G18-576-LNF	23/32" x 7/8" x 3/8"	400°F	Not Suitable
G18-576-LNG	23/32" x 7/8" x 7/16"
G18-576-LOE	23/32" x 7/8" x 5/16"
G18-576-LOF	23/32" x 7/8" x 3/8"
G18-576-LOG	23/32" x 7/8" x 7/16"
G18-576-LPF	23/32" x 1" x 3/8"
G18-576-LQF	23/32" x 1-1/16" x 3/8"
G18-576-LRD	23/32" x 1-1/8" x 1/4"
G18-576-LSG	23/32" x 1-3/16" x 7/16"
G18-576-LTD	23/32" x 1-1/4" x 1/4"

Ethylene Propylene (EPDM) - Sample Pack Specifications

G18-SPL-E62
Item	Size	Temperature	Steam
G18-577-ILF	9/16" x 23/32" x 3/8"	280°F	Suitable
G18-577-IMD	9/16" x 13/16" x 1/4"
G18-577-IME	9/16" x 13/16" x 5/16"
G18-577-IMF	9/16" x 13/16" x 3/8"
G18-577-IND	9/16" x 7/8" x 1/4"
G18-577-INE	9/16" x 7/8" x 5/16"
G18-577-INF	9/16" x 7/8" x 3/8"
G18-577-ING	9/16" x 7/8" x 7/16"
G18-577-IOF	9/16" x 7/8" x 3/8"
G18-577-IOG	9/16" x 7/8" x 7/16"

G18-SPL-E75
Item	Size	Temperature	Steam
G18-577-LNF	23/32" x 7/8" x 3/8"	280°F	Suitable
G18-577-LOE	23/32" x 7/8" x 5/16"
G18-577-LOF	23/32" x 7/8" x 3/8"
G18-577-LRF	23/32" x 1-1/8" x 3/8"
G18-577-LRH	23/32" x 1-1/8" x 1/2"
G18-577-LSH	23/32" x 1-3/16" x 1/2"
G18-577-LSJ	23/32" x 1-3/16" x 5/8"
G18-577-LTF	23/32" x 1-1/4" x 3/8"
G18-577-LTG	23/32" x 1-1/4" x 7/16"
G18-577-LTH	23/32" x 1-1/4" x 1/2"

Graphite - Sample Pack Specifications

G18-SPL-J62
Item	Size	Temperature	Steam
G18-553-JLF	5/8" x 23/32" x 3/8"	425°F	Suitable
G18-553-JMF	5/8" x 13/16" x 3/8"
G18-553-JNE	5/8" x 7/8" x 5/16"
G18-553-JNF	5/8" x 7/8" x 3/8"
G18-553-JNH	5/8" x 7/8" x 1/2"
G18-553-JOE	5/8" x 7/8" x 5/16"
G18-553-JOF	5/8" x 7/8" x 3/8"
G18-553-JOG	5/8" x 7/8" x 7/16"
G18-553-JOH	5/8" x 7/8" x 1/2"
G18-553-JQF	5/8" x 1-1/16" x 3/8"

G18-SPL-J75
Item	Size	Temperature	Steam
G18-553-LOE	23/32" x 7/8" x 5/16"	425°F	Suitable
G18-553-LOF	23/32" x 7/8" x 3/8"
G18-553-LOG-3	23/32" x 7/8" x 7/16"
G18-553-LRH	23/32" x 1-1/8" x 1/2"
G18-553-LTD	23/32" x 1-1/4" x 1/4"
G18-553-LTF	23/32" x 1-1/4" x 3/8"
G18-553-LTG	23/32" x 1-1/4" x 7/16"
G18-553-LTH	23/32" x 1-1/4" x 1/2"
G18-553-LTJ	23/32" x 1-1/4" x 5/8"
G18-553-LTL	23/32" x 1-1/4" x 23/32"

Soft Woven PTFE - Sample Pack Specifications

G18-SPL-P62
Item	Size	Temperature	Steam
G18-556-JOD	5/8" x 7/8" x 1/4"	425°F	Not Suitable
G18-556-JOF	5/8" x 7/8" x 3/8"
G18-556-JOH	5/8" x 7/8" x 1/2"

G18-SPL-P75
Item	Size	Temperature	Steam
G18-556-LOD	23/32" x 7/8" x 1/4"	425°F	Not Suitable
G18-556-LRF	23/32" x 1-1/8" x 3/8"	425°F	Not Suitable

Butler Bevel Seal (PTFE) - Sample Pack Specifications

G18-SPL-V62
Item	Size	Temperature	Steam
G18-584-1	5/8" x 0.860"	425°F	Suitable
G18-584-2	5/8" x 0.900"
G18-584-3	5/8" x 0.960"
G18-584-5	5/8" x 1.080"

G18-SPL-V75
Item	Size	Temperature	Steam
G18-584-6	3/4" x 0.960"	425°F	Suitable
G18-584-7	3/4" x 0.900"
G18-584-9	3/4" x 1.130"

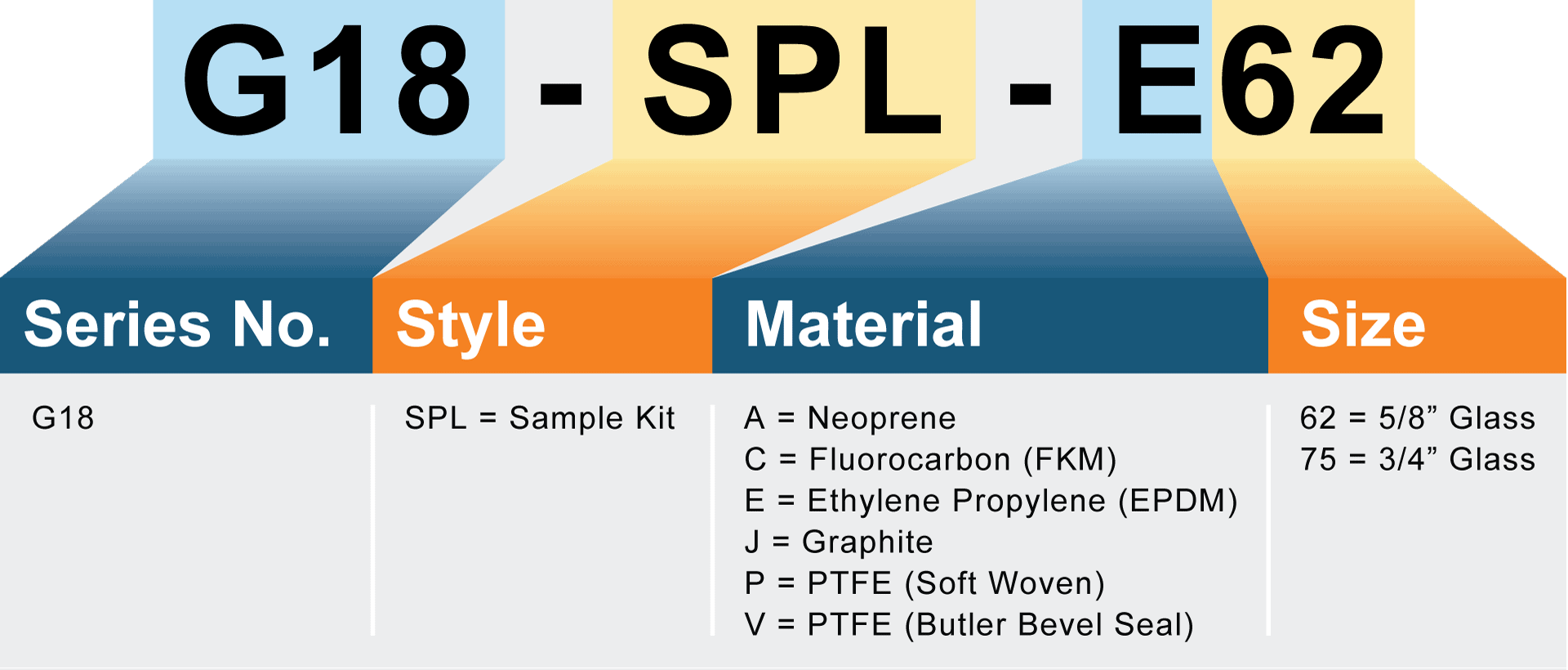

Model Number Matrix
