Features
- 304SS material
- Affixes to tubular level gauge valves with 3/16” or 1/4” diameter guard rods using aluminum brackets
- Affixes to armoured level gauges using aluminum brackets
- Shipped in 2 foot sections with SS hardware to join each section together
- Foot numbers can start at anywhere between 1 to 12
- We cut it to your length
| Scale | ||||||
|---|---|---|---|---|---|---|
| Style | Scale Direction | Numerical Increments | Incremental Markings | Maximum Length | Width | Typical Availability |
| 869U | Up Inches | 1” to 11” repeated every foot in black Each foot in red numbers from 1’ to 12’ | Every 1/2” in black | 12 Feet | 1” | Ships same or next day |
| Brackets | |
|---|---|
| Style | Affixes To |
| 869MB-1 | 3/16” Diameter Guard Rods |
| 869MB-2 | 1/4” Diameter Guard Rods |
| 869MB-3 | Armoured Gauges |
| Number of Brackets Required - Based On Scale Length (Maximum recommended distance between brackets: 4 feet) |
|
|---|---|
| Scale Lengths (Feet) | Minimum number of Brackets Required |
| 1 - 4 | 2 |
| 5 - 8 | 3 |
| 9 - 12 | 4 |

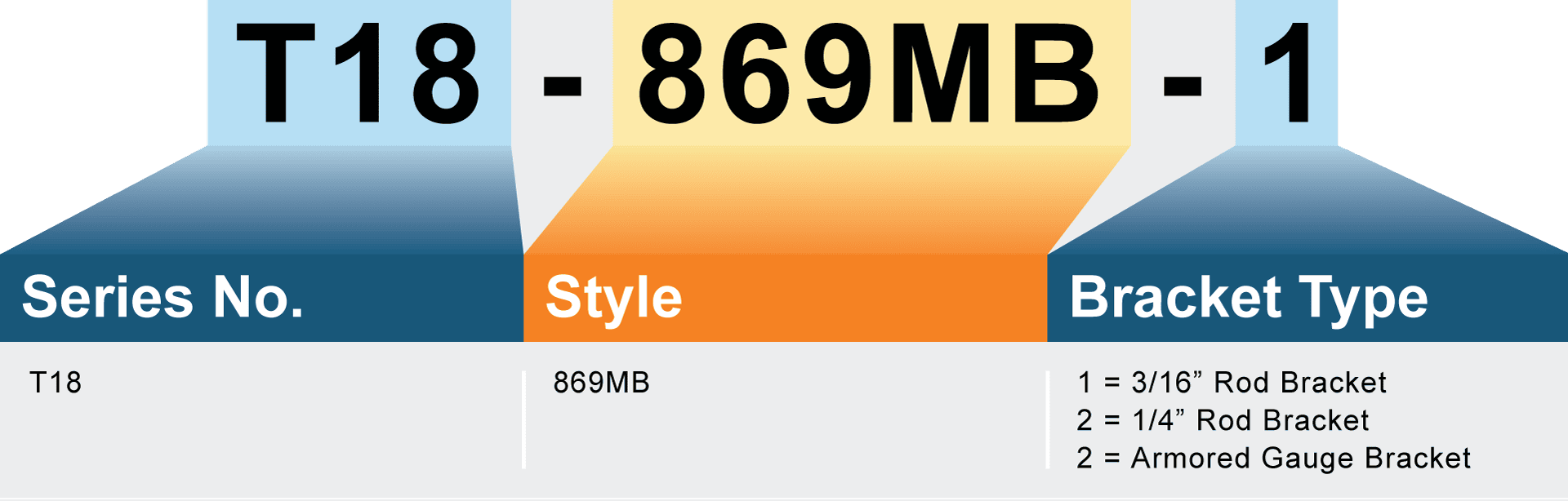

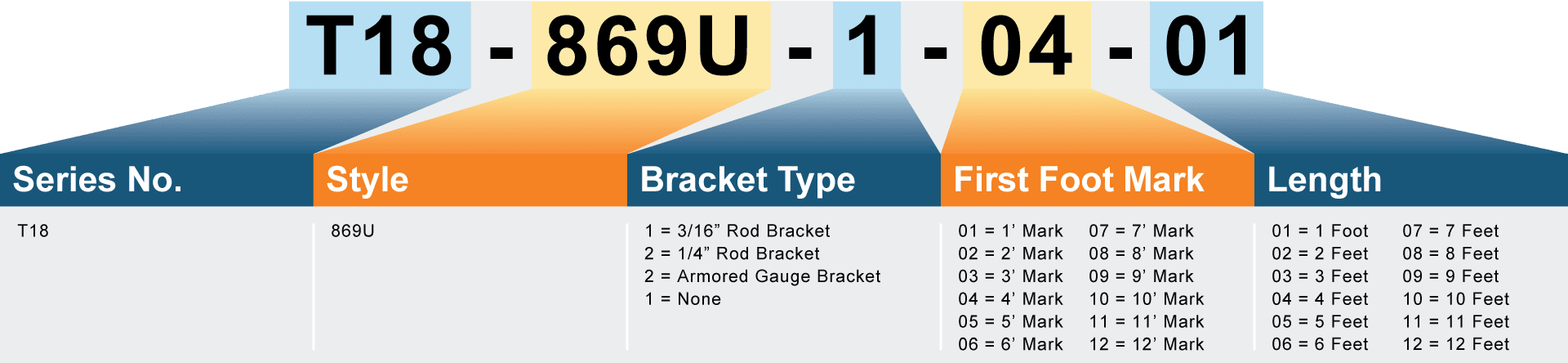

Model Number Matrix
